Flat Jacks - Plain Ram, Single Acting, Spring Return
Capacity 5 - 200 ton / Stroke 8 - 16 mm / Max. Working pressure 700 bar

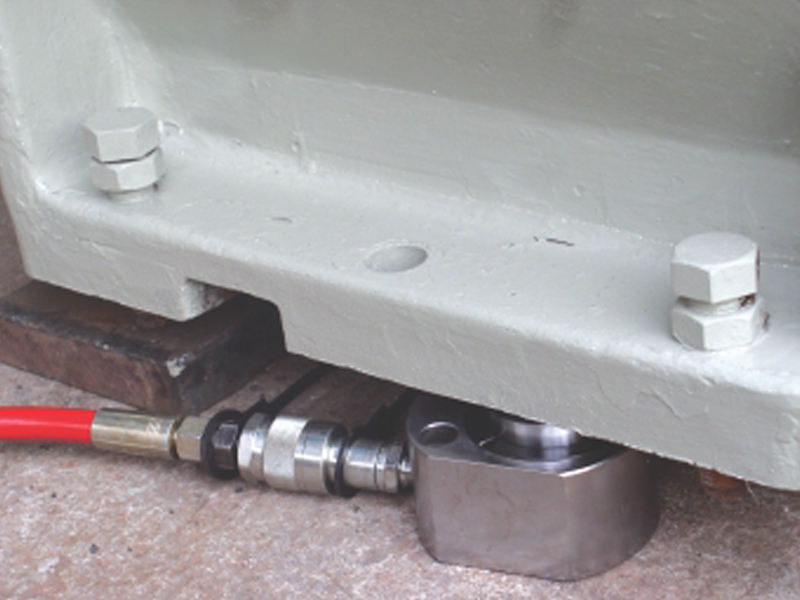

Application :
Compact and flat design ideally suited where clearance is minimum for insertion of jack.
Mounting holes for easy fixturing. Used for structural weld positing, rigging in bridge construction, heavy fabrication and maintance.
Caution - Provide a level and soild support for entire jack base area since the ram guide length is small.
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
|---|---|---|---|---|---|---|---|
| 5 | 56 | 8 | OSF 5-8 | 8 | 6 | 35 | 0.6 |
| 10 | 111 | 12 | OSF 10-12 | 15.9 | 19 | 45 | 1.3 |
| 20 | 218 | 12 | OSF 20-12 | 31.2 | 37 | 55 | 2.6 |
| 30 | 309 | 12 | OSF 30-12 | 44.2 | 53 | 60 | 3.8 |
| 50 | 550 | 16 | OSF 50-16 | 78.5 | 126 | 65 | 6.2 |
| 75 | 792 | 16 | OSF 75-16 | 113.1 | 180 | 80 | 11.8 |
| 100 | 1077 | 16 | OSF 100-16 | 153.9 | 247 | 85 | 15.1 |
| 150 | 1589 | 16 | OSF 150-16 | 227 | 363 | 100 | 27 |
| 200 | 1985 | 16 | OSF 200-16 | 283.5 | 454 | 115 | 40.7 |
