Pile Testing Jacks

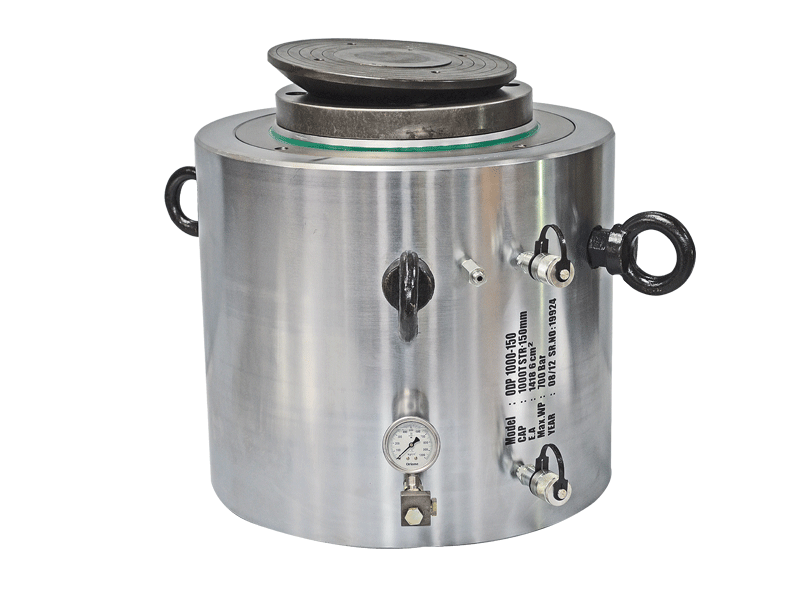

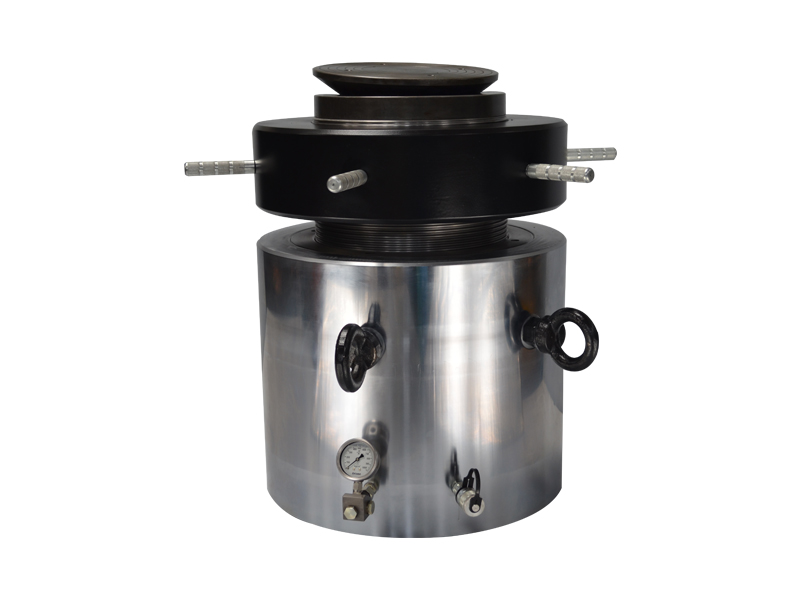

Available in Single Acting (Plain & Threaded Ram with lock nut) as well as Double Acting as per application / requirement

Spherical Saddle with tilt angle 5° max., takes care of cross loading

Gauge port on Jack to measure load

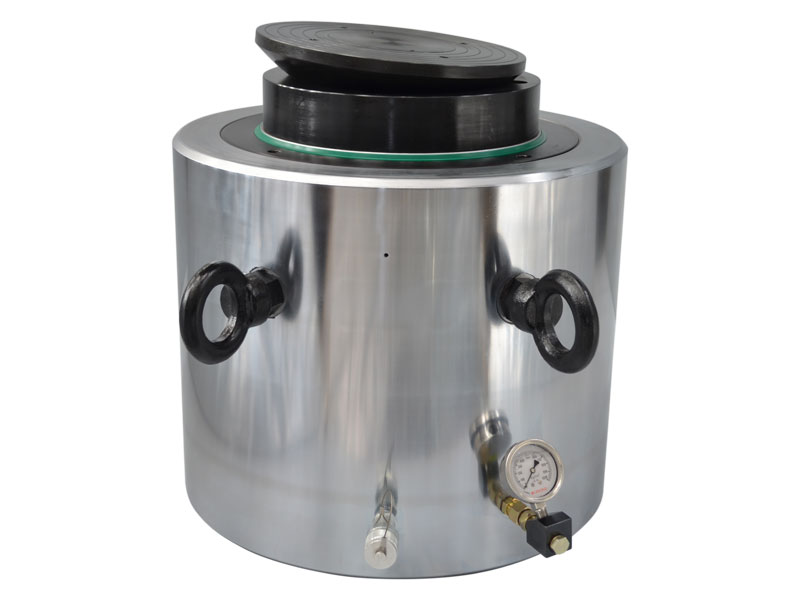

Single Acting, Plain Ram

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed Height (mm)	Wt. (Approx.) (kg)	Suitable pump
500	4948	150	OLTS 500-150	706.9	10603	465	405	OPU-5-50-HS
500	4948	200	OLTS 500-200	706.9	14137	515	446	OPU-5-50-HS
1000	9930	150	OLTS 1000-150	1418.6	21279	570	970	OPU-5-80-HS
1000	9930	200	OLTS 1000-200	1418.6	28373	620	1050	OPU-5-80-HS
1500	15154	150	OLTS 1500-150	2164.8	32472	660	1810	OPU-5-80-HS
1500	15154	200	OLTS 1500-200	2164.8	43296	710	1940	OPU-5-80-HS
2000	20458	150	OLTS 2000-150	2922.5	43837	750	2705	OPU-5-80-HS
2000	20458	200	OLTS 2000-200	2922.5	58450	800	2877	OPU-5-80-HS

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed Height (mm)	Wt. (Approx.) (kg)	Suitable pump
500	4948	150	OLTS 500-150	706.9	10603	465	405	OPU-5-50-HS
500	4948	200	OLTS 500-200	706.9	14137	515	446	OPU-5-50-HS
1000	9930	150	OLTS 1000-150	1418.6	21279	570	970	OPU-5-80-HS
1000	9930	200	OLTS 1000-200	1418.6	28373	620	1050	OPU-5-80-HS
1500	15154	150	OLTS 1500-150	2164.8	32472	660	1810	OPU-5-80-HS
1500	15154	200	OLTS 1500-200	2164.8	43296	710	1940	OPU-5-80-HS
2000	20458	150	OLTS 2000-150	2922.5	43837	750	2705	OPU-5-80-HS
2000	20458	200	OLTS 2000-200	2922.5	58450	800	2877	OPU-5-80-HS

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed Height (mm)	Wt. (Approx.) (kg)	Suitable pump
500	4948	150	ODPS 500-150	706.9	10603	450	365	OPU-3-40-HS
500	4948	200	ODPS 500-200	706.9	14137	500	405	OPU-3-40-HS
1000	9930	150	ODPS 1000-150	1418.6	21279	560	868	OPU-5-50-HS
1000	9930	200	ODPS 1000-200	1418.6	28373	610	948	OPU-5-50-HS
1500	15154	150	ODPS 1500-150	2164.8	32472	620	1534	OPU-5-80-HS
1500	15154	200	ODPS 1500-200	2164.8	43296	670	1661	OPU-5-80-HS
2000	20458	150	ODPS 2000-150	2922.5	43837	705	2357	OPU-5-80-HS
2000	20458	200	ODPS 2000-200	2922.5	58450	755	2532	OPU-5-80-HS
