Workshop Hydraulic Presses, Workshop Hydraulic Press, Navi Mumbai, India

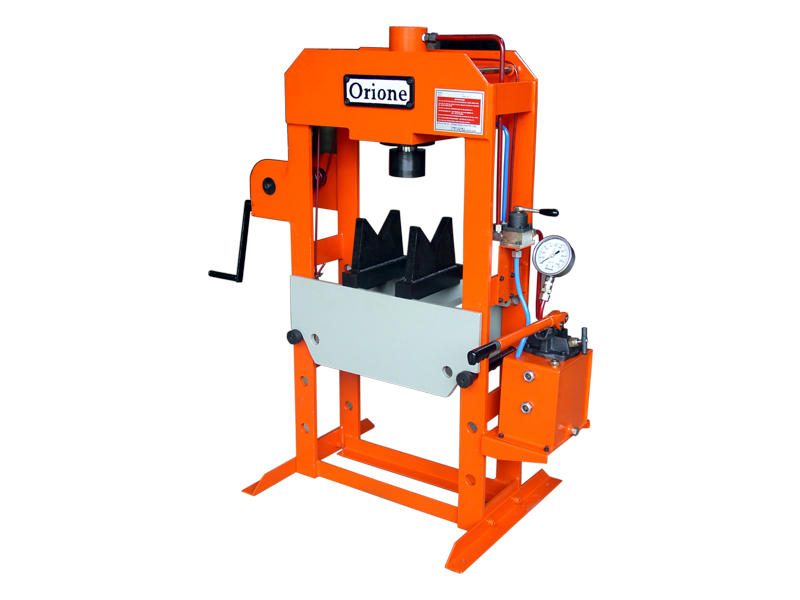

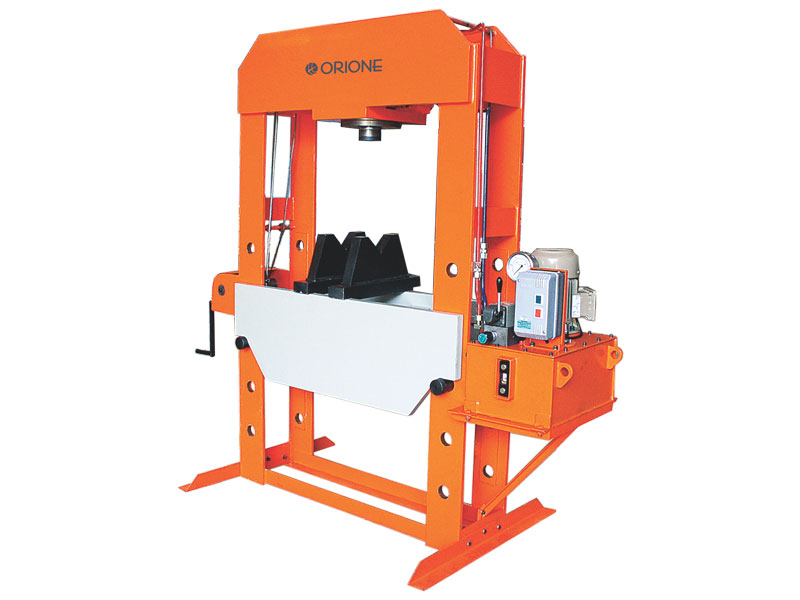

Hydraulic Workshop Presses

Request A Quote

For removal and fitment of bearings, sprockets, gears and straightening of shafts.

Two stage hand pump / motorizes power pack (Optional) with pressure gauge. Pair of "V" blocks and one pushing adaptor.

Mechanical winch for models 50t and above for others.

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Day Light Min. (mm)	Day Light Max. (mm)	Total Height (mm)	Approx Weight (Kg)	Pumping Unit (Model)
15	167	150	OWP 15-150	150	600	1155	155	OHP-2P4-2-5
30	309	150	OWP 30-150	150	750	1445	280	OHP-2P4-2-5
50	550	150	OWP 50-150	150	900	1770	425	OHP-2P4-2-5
75	792	200	OWP 75-200	200	1000	1905	580	OHP-2P4-2-5
100	1077	200	OWP 100-200	250	1050	2080	1070	OPU002031
150	1589	300	OWP 150-300	300	1050	2275	1500	OPU003077
200	2199	300	OWP 200-300	300	1050	2430	2350	OPU003077
300	3167	300	OWP 300-300	250	1000	2525	3900	OPU003077
500	4948	300	OWP 500-300	250	1000	2745	4900	OPU005078
