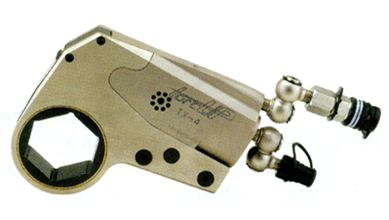

Tx Series Hydraulic Torque Wrench Specifications
FLAT DESIGN FROM CYLINDER TO LINK!
UNIQUE PEANUT SHAPED PISTON!
DIRECT FLOW OIL DISTRIBUTION FOR FASTE STRIKE!
LESS MOVING PARTS!
ACCURATE REPEATABILITY!
HANDS - OFF OPERATION!
Simply... The Flattest Hydraulic Wrench Ever Produced
Request A QuoteTechnical :
Model No.
|
TX-2
|
TX-4
|
TX-8
|
TX-16
|
TX-32
|
Tool Hex from
|
19mm/3/4"
|
25mm/1"
|
50mm/1.7/8"
|
65mm / 2.5/8"
|
80mm/3.1/8"
|
to
|
60mm / 2.3/8"
|
80mm/3.1/8"
|
105mm / 4"
|
115mm/ 4.5/8"
|
155mm/6.1/8"
|
Min. Torque Kg-m (Ft/Lbs)
|
26(192)
|
54 (395)
|
115(830)
|
215(1,560)
|
445 (3,220)
|
Max. Torque Kg-m (Ft/Lbs)
|
260 (1,928)
|
540 (3,950)
|
1192(8,630)
|
2293(16,600)
|
4924 (35,650)
|
Output Accuracy
|
+/- 3%
|
+/- 3%
|
+/- 3%
|
+/- 3%
|
+/- 3%
|
Repeatability
|
100%
|
100%
|
100%
|
100%
|
100%
|
Duty Cycle
|
100%
|
100%
|
100%
|
100%
|
100%
|
Corrosion Protection
|
Standard
|
||||
Cylinder Weight Kgs / (Lbs)
|
1.59 / (3.50)
|
2.73 / (6.00)
|
5.32/(11.70)
|
7.27/(16.00)
|
11.82/(26.00)
|
Link Weight from Kgs / (Lbs)
|
1.09/(2.40)
|
2.45 / (5.40)
|
5.41 / (11.90)
|
9.55/(21.00)
|
13.18/(29.00)
|
to Kgs / (Lbs)
|
1.59 / (3.50)
|
3.45 / (7.60)
|
6.59/(14.50)
|
12.73/(28.00)
|
17.95/(39.50)
|
