General Purpose Jacks Threaded Ram

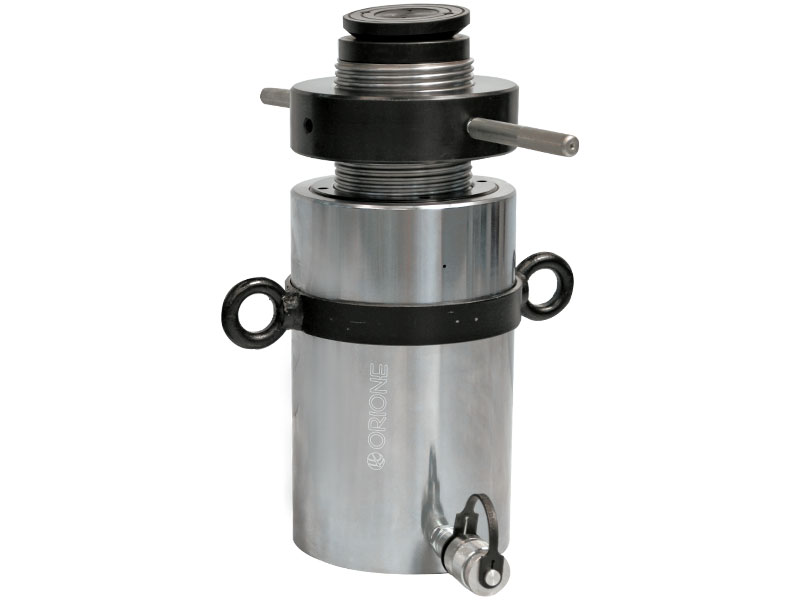

General Purpose Jacks - Threaded Ram With Safety Lock Nut, Single Acting, Spring Return

Capacity 10 - 1000 ton / Stroke 150 mm / Max. Working Pressure 700 bar

Request A Quote

Application :

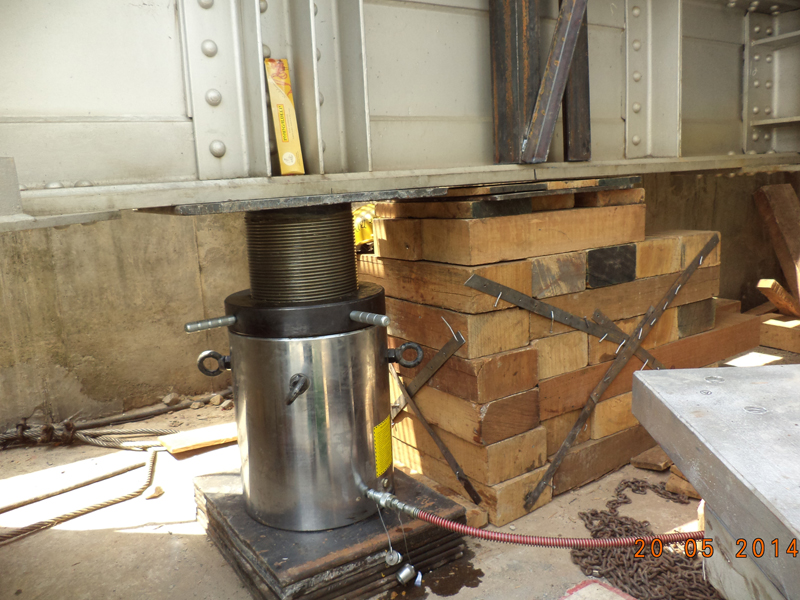

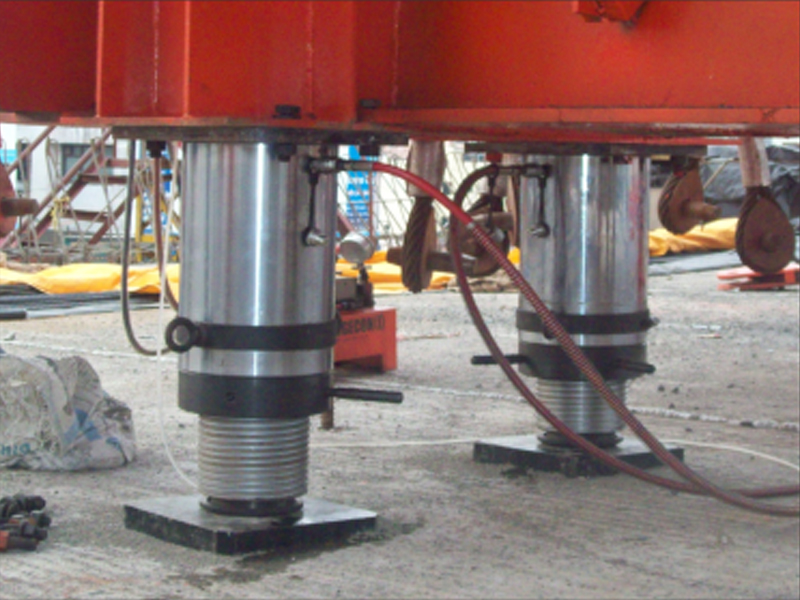

Suited For applications requiring sustained load holding such as concrete pile testing bridge support work in construction industries.

Muitipurpose application for maintenance in industries such as steel, cement and power plants.



Capacity
(ton)		 Capacity
(kN)		 Stroke
(mm)		 Model Effective area
(cm2)		 Oil cap.
(cc)		 Closed height
(mm)		 Wt. (Approx.)
(kg)
10 111 150 OST 10-150 15.9 239 245 4.50
15 167 150 OST 15-150 23.8 356 250 6.50
20 218 150 OST 20-150 31.2 468 260 9.00
25 270 150 OST 25-150 38.5 577 270 11.30
30 309 150 OST 30-150 44.2 663 275 14.50
50 550 150 OST 50-150 78.5 1178 290 26.50
75 792 150 OST 75-150 113.1 1696 295 37.00
100 1077 150 OST 100-150 153.9 2309 305 56.00
150 1589 150 OST 150-150 227 3405 325 86.00
200 2199 150 OST 200-150 314.2 4712 340 110.00
250 2661 150 OST 250-150 380.1 5702 350 134.00
300 3167 150 OST 300-150 452.4 6786 370 176.00
400 4008 150 OST 400-150 572.6 8588 405 240.00
500 4948 150 - 706.86 10603 - 0.00
Capacity
(ton)		 Capacity
(kN)		 Stroke
(mm)		 Model Effective area
(cm2)		 Oil cap.
(cc)		 Closed height
(mm)		 Wt. (Approx.)
(kg)
10 111 150 OSTS 10-150 15.9 239 255 4.7
15 167 150 OSTS 15-150 23.8 356 265 6.7
20 218 150 OSTS 20-150 31.2 468 275 9.3
25 270 150 OSTS-25-150 38.5 577 285 11.7
30 309 150 OSTS 30-150 44.2 663 290 15
50 550 150 OSTS 50-150 78.5 1178 305 27
75 792 150 OSTS 75-150 113.1 1696 320 38
100 1077 150 OSTS 100-150 153.9 2309 325 57
150 1589 150 OSTS 150-150 227 3405 350 88.5
200 2199 150 OSTS 200-150 314.2 4712 365 114
250 2661 150 OSTS 250-150 380.1 5702 385 139
300 3167 150 OSTS 300-150 452.4 6786 405 183.5
400 4008 150 OSTS 400-150 572.6 8588 445 252
500 4948 150 OSTS 500-150 706.86 10603 465 363
Capacity
(ton)		 Capacity
(kN)		 Stroke
(mm)		 Model Effective area
(cm2)		 Oil cap.
(cc)		 Closed height
(mm)		 Wt. (Approx.)
(kg)
600 5987 150 OLTS 600-150 855.3 12829 495.00 495
800 7939 150 OLTS 800-150 1134.1 17012 535.00 731
1000 9930 150 OLTS 1000-150 1418.6 21279 570.00 970
1500 15154 150 OLTS 1500-150 2164.8 32472 660.00 1810
2000 20458 150 OLTS 2000-150 2922.5 43837 750.00 2705
