Hydraulic Hand Pumps (Steel - Single / Two Stage)
Features :
Construction graded steel.
Ground and plated plungers.
Built-in factory set safety relief valve.
Durable polyurethane plunger seal.
Single Stage Pumps (Single plunger) for smaller capacity jacks.
Two Stage Pumps (Two plungers) fast approach to load.
Compatible to all reputed brand jacks.
Available in 350, 1000, 1600 and 2800 bar.
"How To Choose A Pump"
| Pump Stage | Model | Pressure 1st stage (kg/cm2) |
Pressure 2nd stage (kg/cm2) |
Flow / stroke 1st stage (cc) |
Flow / stroke 2nd stage (cc) |
Filling Capacity (ltrs.) |
Usable Oil (ltrs.) |
Handle Effort (kg) |
Dry Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|

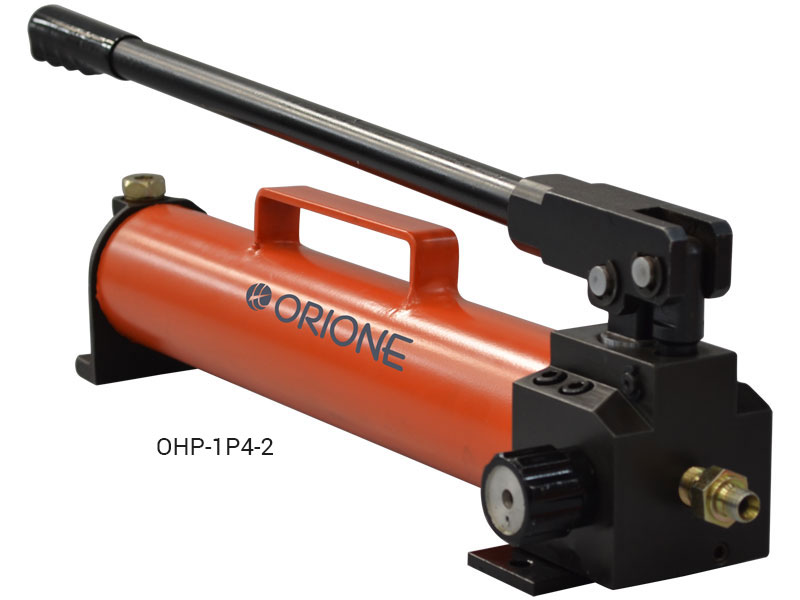

| Single | OHP-1P4-2-1.5 | - | 700 | - | 2.8 | 1.5 | 1 | 40 | 7.4 |
| Single | OHP-1P4-2-2 | - | 700 | - | 2.8 | 2 | 1.5 | 40 | 9.5 |
| Single | OHP-1P4-2-4 | - | 700 | - | 2.8 | 4 | 2.9 | 40 | 10.5 |

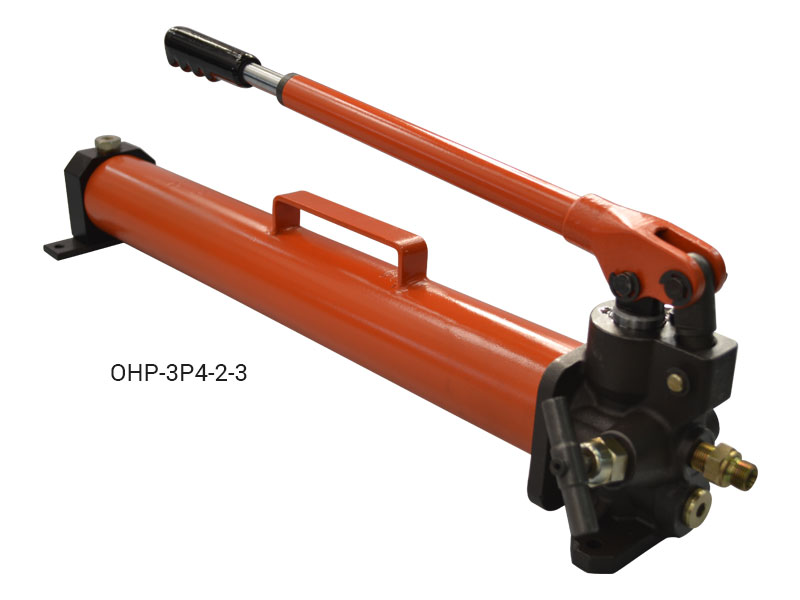

| Two | OHP-3P4-2-3 | 30 | 700 | 17 | 2.8 | 3 | 1.9 | 40 | 12.5 |
| Pump Stage | Model | Pressure 1st stage (kg/cm2) |
Pressure 2nd stage (kg/cm2) |
Flow / stroke 1st stage (cc) |
Flow / stroke 2nd stage (cc) |
Filling Capacity (ltrs.) |
Usable Oil (ltrs.) |
Handle Effort (kg) |
Dry Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|

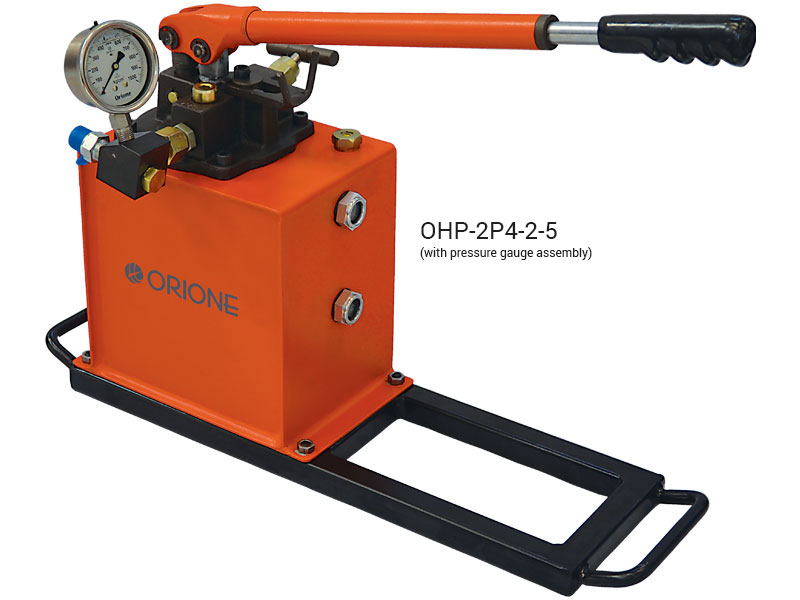

| Two | OHP-2P4-2-5 | 30 | 700 | 49 | 2.8 | 5 | 3.5 | 40 | 18.5 |

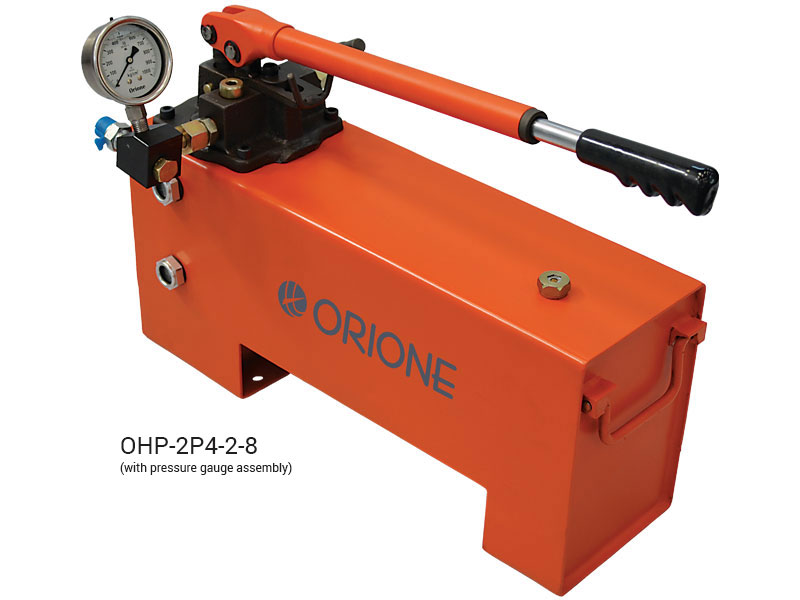

| Two | OHP-2P4-2-8 | 30 | 700 | 49 | 2.8 | 8 | 7.5 | 40 | 20 |
| Two | OHP-2P4-2-13 | 30 | 700 | 49 | 2.8 | 13 | 11 | 40 | 24.5 |
| Two | OHP-2P4-2-20 | 30 | 700 | 49 | 2.8 | 20 | 16 | 40 | 28 |
