Multi Stand Jacks
Features / Application :
Features / Application :
Pre-stressing and post tensioning of strands in concrete structure
Mechanical stroke limiter (by-pass type) and pressure relief valve on return side for safety
Suitable calibrated power pack units and accessories available

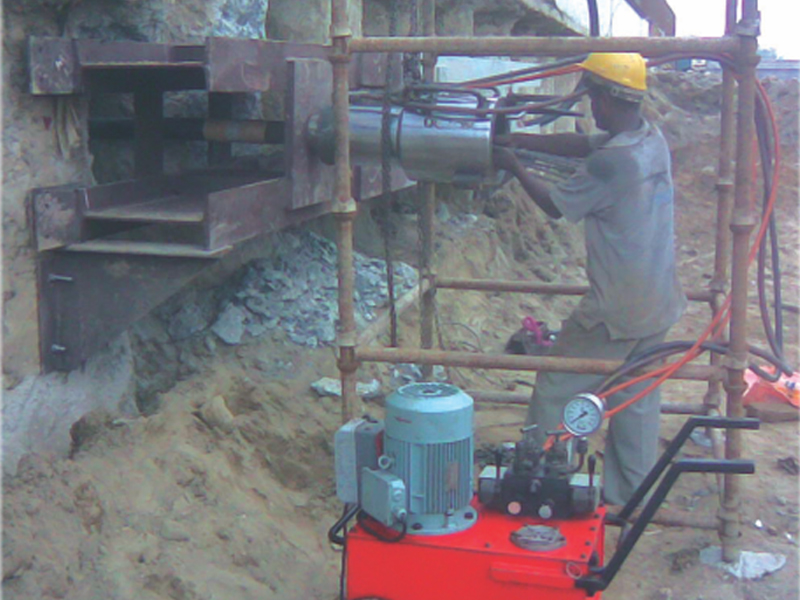

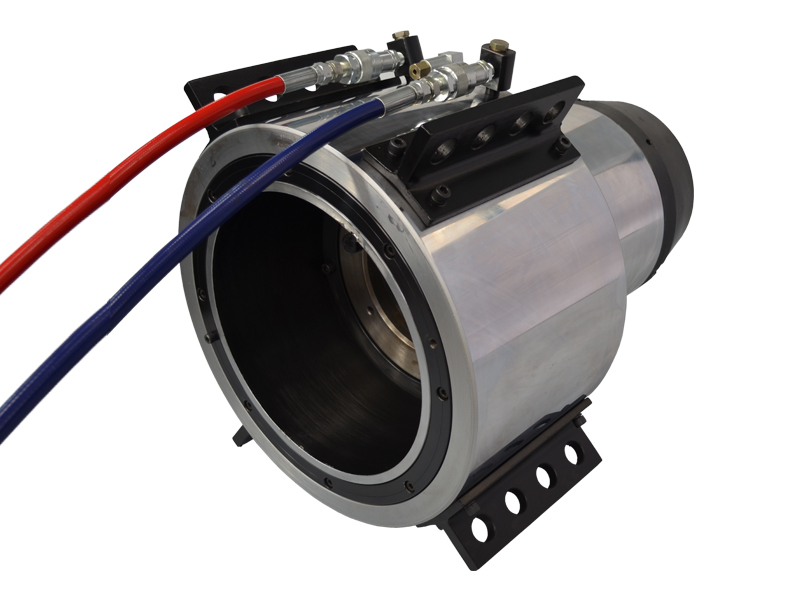

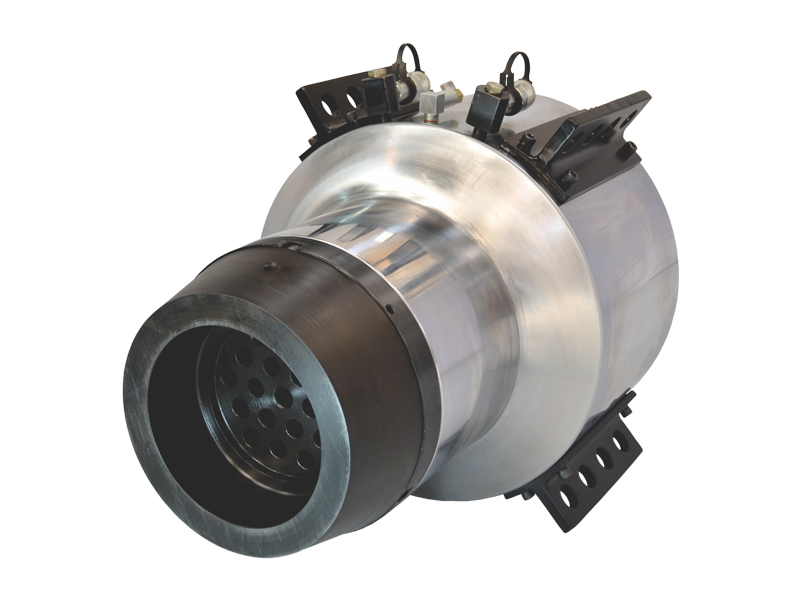

OML
Long Profile
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | No. of Strands 05” Size |
No. of Strands 06” Size |
Effective area (cm2) |
Oil Cap. (cc) |
Closed height (mm) |
Wt.(Approx.) (kg.) |
|---|---|---|---|---|---|---|---|---|---|
| 200 | 2167 | 300 | OML 200-300 | 12 | 7 | 309.6 | 9290 | 785 | 265 |
| 350 | 3788 | 300 | OML 350-300 | 19 | 12 | 541.1 | 16234 | 830 | 450 |
| 425 | 4618 | 150 | OML 425-150 | 31 | 19 | 659.7 | 9900 | 515 | 390 |

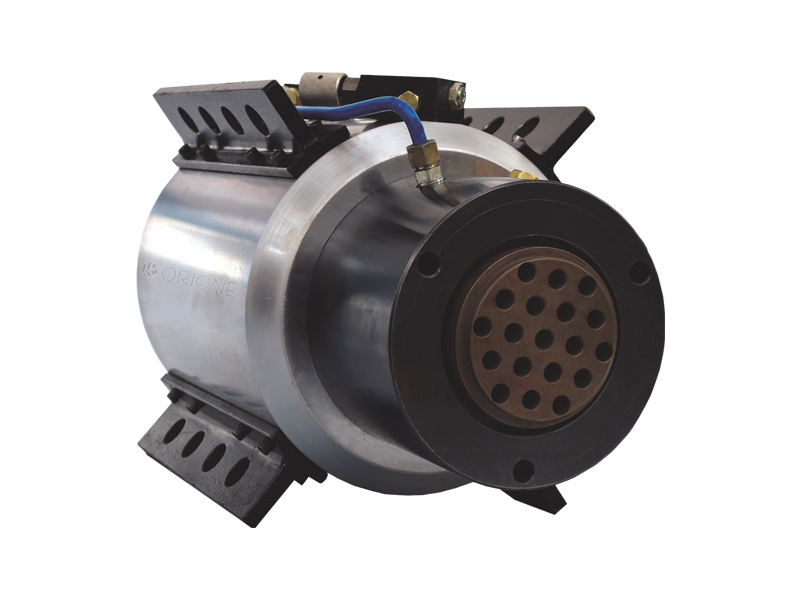

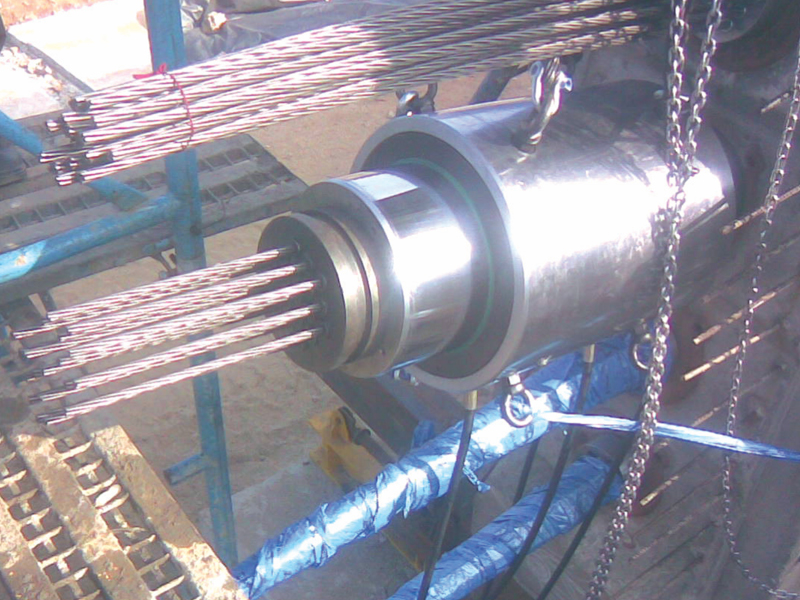

OMS
Wedge Lock Short Profile
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | No. of Strands 05” Size |
No. of Strands 06” Size |
Effective area (cm2) |
Oil Cap. (cc) |
Closed height (mm) |
Wt.(Approx.) (kg.) |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 1378 | 200 | OMS 100-200 | 7 | 5 | 196.9 | 3939 | 405 | 110 |
| 200 | 2568 | 200 | OMS 200-200 | 12 | 7 | 366.8 | 7340 | 395 | 185 |
| 300 | 4155 | 200 | OMS 300-200 | 19 | 12 | 593.5 | 11870 | 455 | 305 |
| 480 | 5454 | 200 | OMS 480-200 | 31 | 19 | 779.1 | 15582 | 530 | 525 |
| 680 | 8775 | 200 | OMS 680-200 | 42 | 27 | 1253.5 | 25070 | 570 | 845 |
| 1050 | 12338 | 200 | OMS 1050-200 | 61 | 42 | 1762.6 | 35253 | 615 | 1670 |
| 1500 | 18411 | 200 | OMS 1500-200 | - | 55 | 2630.1 | 52603 | 700 | 3300 |

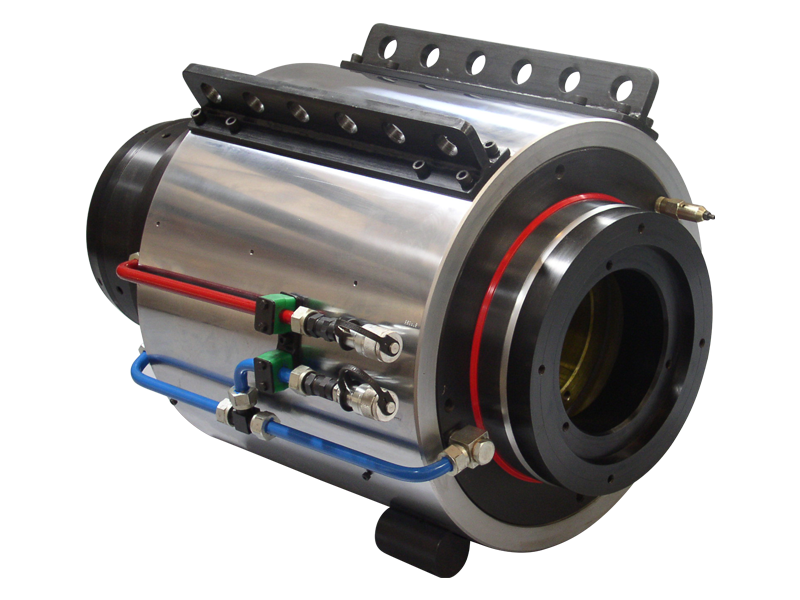

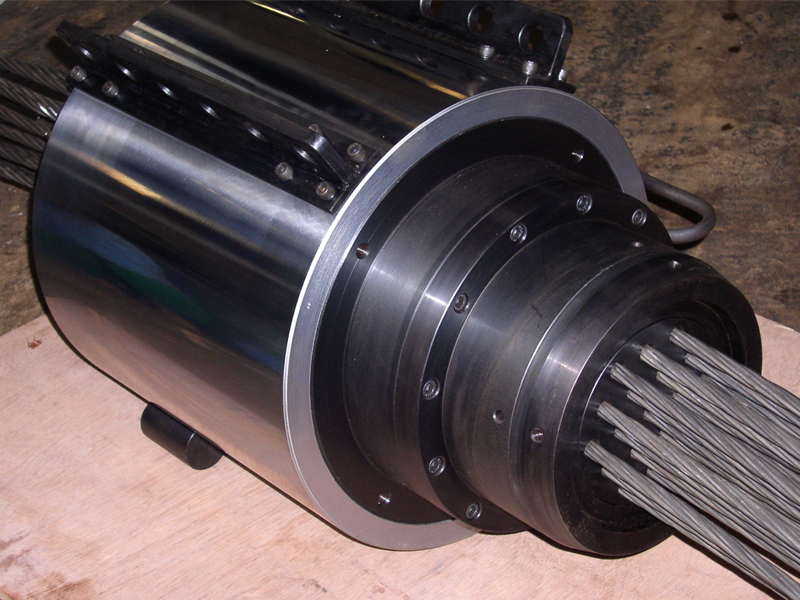

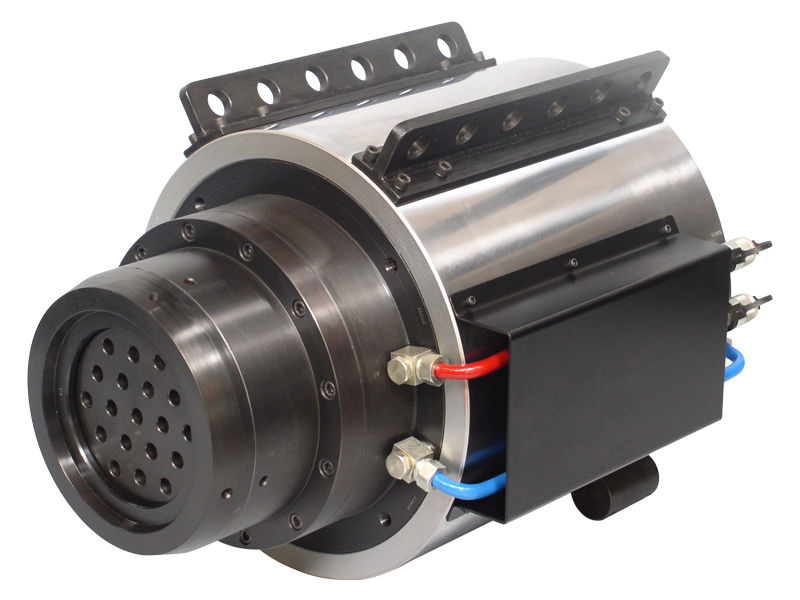

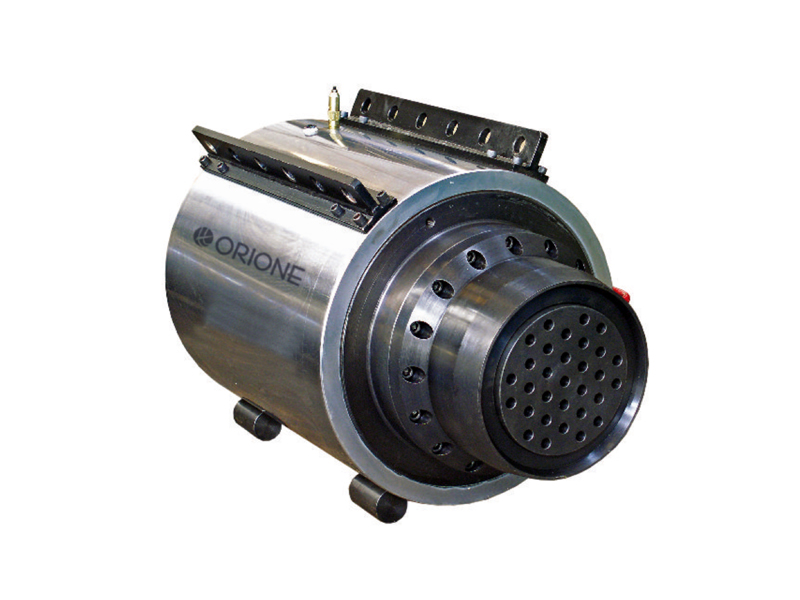

OMI
Internal Wedge Lock
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | No. of Strands 05” Size |
No. of Strands 06” Size |
Effective area (cm2) |
Oil Cap. (cc) |
Closed height (mm) |
Wt.(Approx.) (kg.) |
|---|---|---|---|---|---|---|---|---|---|
| 100 | 1678 | 300 | OMI 100-300 | 7 | 5 | 242.5 | 7275 | 810 | 220 |
| 200 | 2722 | 300 | OMI 200-300 | 12 | 7 | 388.8 | 11664 | 845 | 360 |
| 300 | 3931 | 300 | OMI 300-300 | 19 | 12 | 561.6 | 16847 | 870 | 460 |
| 480 | 5837 | 300 | OMI 480-300 | 31 | 19 | 833.9 | 25017 | 925 | 910 |
| 680 | 8775 | 300 | OMI 680-300 | 42 | 27 | 1253.5 | 37605 | 1000 | 1480 |
| 1050 | 12338 | 300 | OMI 1050-300 | 61 | 42 | 1762.6 | 52880 | 1200 | 2210 |
| 1500 | 17613 | 300 | OMI 1500-300 | - | 55 | 2516.2 | 75490 | 1285 | 4100 |
