Span Lifting Jacks
Capacity : 75-1000 ton | Stroke : 30-100 mm | Working Pressure : 700 Bar
Features / Application :
Compact with ram stopper design ideally suited where space is limited
Lifting application requiring sustained load holding in Infrastructure projects, heavy fabrication
Low height design for low clearance areas
Tilt saddle to take care of angular loading
Internal stopper prevents ram ejection
Used in low clearance confined area

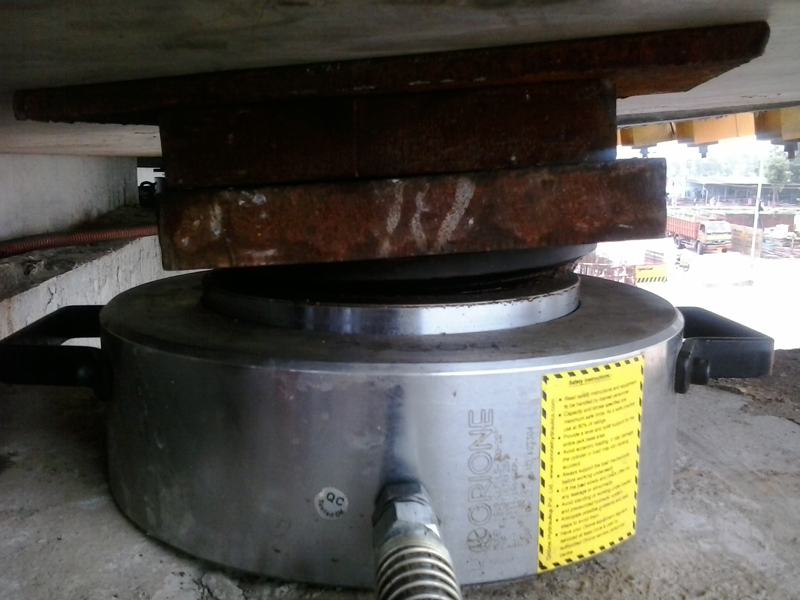

Ideally suited for precision lifting, alignment of machinery, heavy structures and girders requiring sustained load holding
Threaded Ram, Spring Return
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil Cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg.) |
Suitable pump |
|---|---|---|---|---|---|---|---|---|
| 200 | 2199 | 50 | CSTS 200-50 | 314.2 | 1571 | 200 | 75 | OHP-2P4/2-5 |
| 250 | 2661 | 45 | CSTS 250-45 | 380.1 | 1711 | 220 | 100 | OHP-2P4/2-5 |
| 250 | 2661 | 75 | CSTS 250-75 | 380.1 | 2851 | 250 | 105 | OHP-2P4/2-5 |
| 250 | 2661 | 100 | CSTS 250-100 | 380.1 | 3801 | 275 | 118 | OHP-2P4/2-8 |
| 300 | 3167 | 100 | CSTS 300-100 | 452.4 | 4524 | 290 | 162 | OHP-2P4/2-8 |
| 400 | 4948 | 40 | CSTS 400-40 | 706.9 | 2827 | 235 | 220 | OHP-2P4/2-8 |
| 500 | 4948 | 50 | CSTS 500-50 | 706.9 | 3534 | 320 | 310 | OHP-2P4/2-8 |

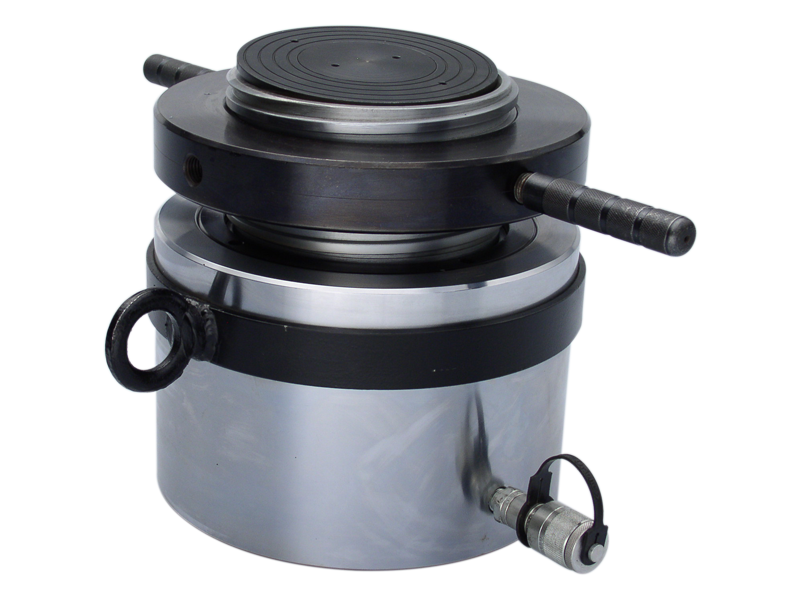

Threaded Ram, Load Return
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil Cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg.) |
Suitable Pump |
|---|---|---|---|---|---|---|---|---|
| 100 | 1077 | 150 | CLTS 100-50 | 153.9 | 770 | 175 | 40 | OHP-2P4/2-5 |
| 100 | 1077 | 75 | CLTS 100-75 | 153.9 | 1155 | 200 | 47 | OHP-2P4/2-5 |

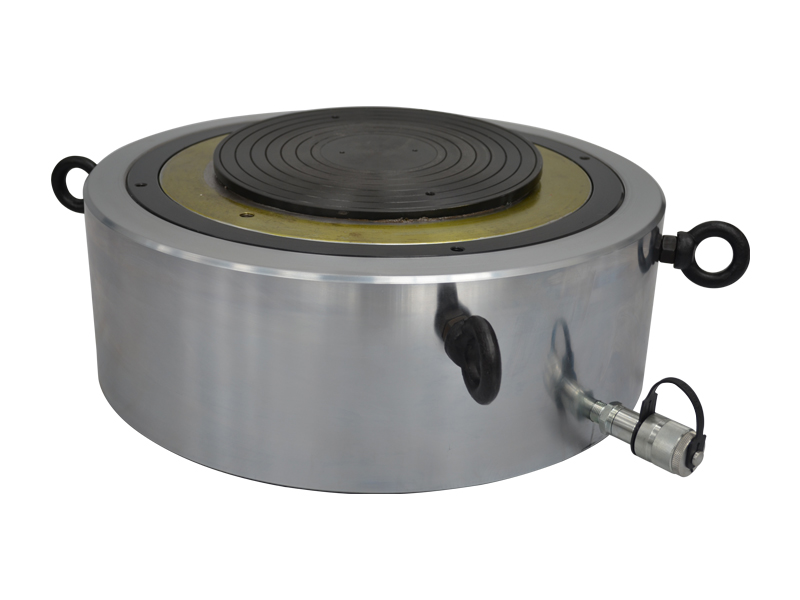

Plain Ram, Load Return
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil Cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg.) |
Suitable pump |
|---|---|---|---|---|---|---|---|---|
| 250 | 2661 | 45 | OLPVLS 250-45 | 380.1 | 1711 | 140 | 65 | OPU-2-20-HS |
| 400 | 4008 | 45 | OLPVLS 400-45 | 572.6 | 2576 | 160 | 112 | OPU-2-20-HS |
| 500 | 4948 | 45 | OLPVLS 500-45 | 706.9 | 3181 | 170 | 158 | OPU-2-20-HS |
| 800 | 7939 | 45 | OLPVLS 800-45 | 1134.1 | 5104 | 190 | 275 | OPU-2-20-HS |
| 1000 | 9930 | 45 | OLPVLS 1000-45 | 1418.6 | 6384 | 220 | 392 | OPU-2-20-HS |

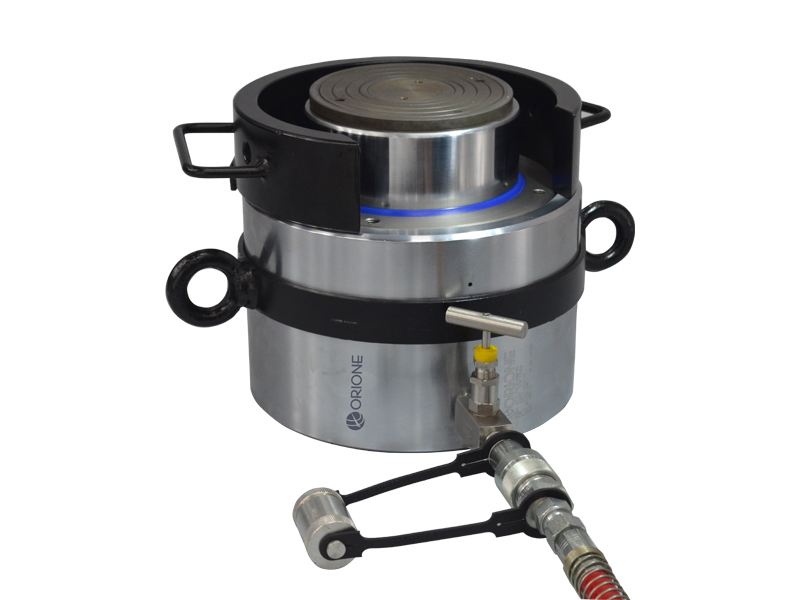

With Cribbing Block
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil Cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg.) |
Suitable pump |
|---|---|---|---|---|---|---|---|---|
| 75 | 1077 | 130 | CSLS 75-30 | 153.9 | 462 | 125 | 17 | OHP-2P4-2-5 |
| 100 | 1077 | 60 | CSLS 100-60 | 153.9 | 924 | 160 | 25 | OHP-2P4-2-5 |
| 200 | 2199 | 55 | CSLS 200-55 | 314.2 | 1728 | 180 | 63 | OHP-2P4-2-5 |
| 250 | 2661 | 60 | CSLS 250-60 | 380.1 | 2281 | 200 | 86 | OHP-2P4-2-8 |
| 250 | 2661 | 100 | CSLS 250-100 | 380.1 | 3801 | 240 | 102 | OHP-2P4-2-8 |
