Hollow Ram Jacks - Plain Ram, Double Acting, Oil Return

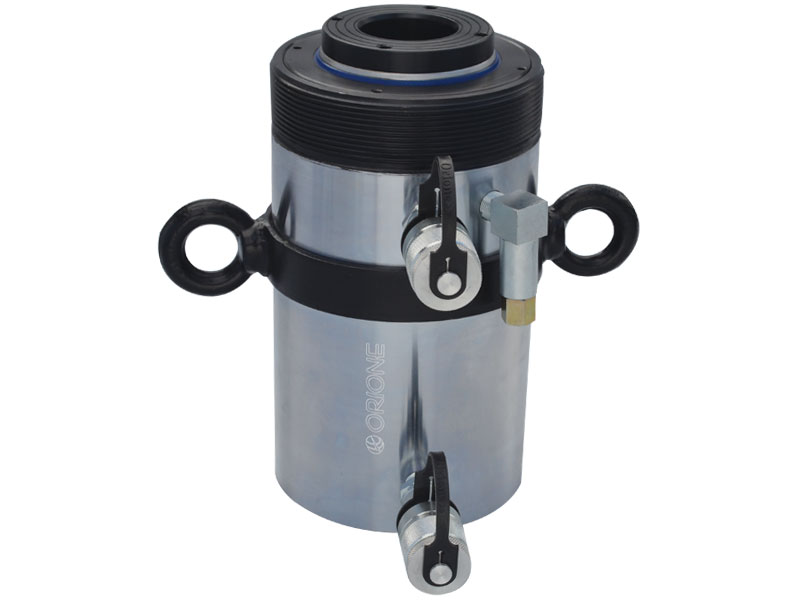

Hollow Ram Jacks Double Acting

Capacity 10 - 150 ton / Stroke 50 - 150 mm / Max. Working Pressure 700 bar

Request A Quote

Application :

As hydraulic pullers with mechanical accessories for removing and assembling bearing bushes, pins, cylinder liners, pulling tubes of heat exchangers, gears and flanges of machinery.

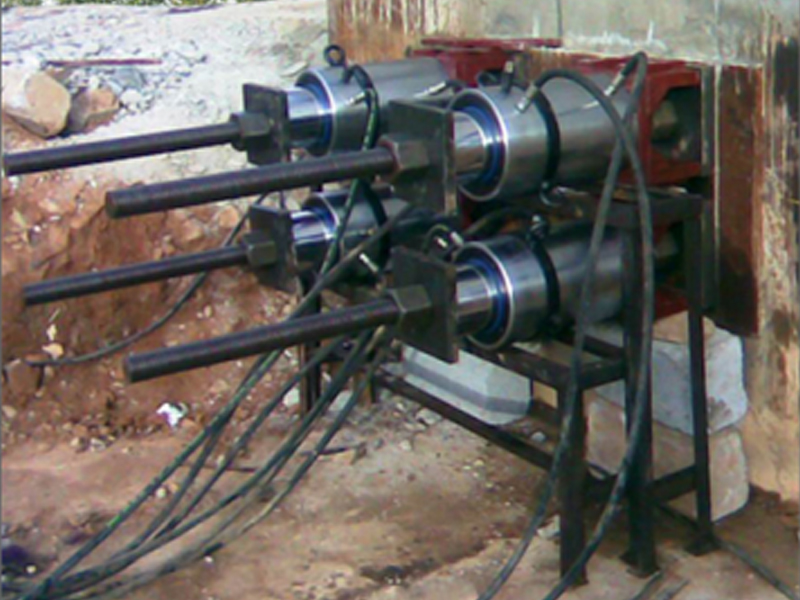

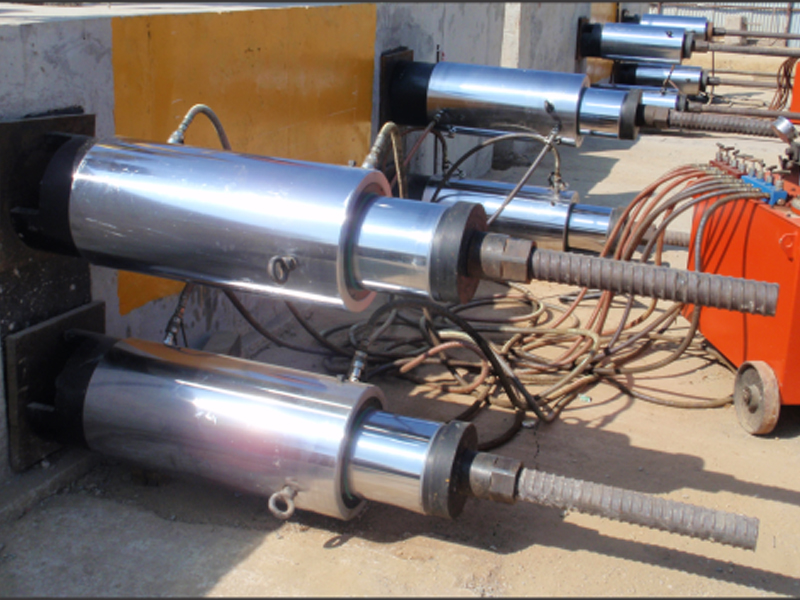

As per / pre - stressing jacks in construction sites.

Capacity (ton)	Capacity (kN)	Stroke (mm)	Model	Effective area (cm2)	Oil cap. (cc)	Closed height (mm)	Wt. (Approx.) (kg)
10	103	75	ODH 10-75	14.7	110	195	5.5
10	103	100	ODH 10-100	14.7	147	220	6
20	202	50	ODH 20-50	28.9	144	185	12
20	202	100	ODH 20-100	28.9	289	235	14.5
20	202	150	ODH 20-150	28.9	433	285	17
30	309	50	ODH 30-50	44.2	221	200	13.5
30	309	100	ODH 30-100	44.2	442	250	16
30	309	150	ODH 30-150	44.2	663	300	19
50	528	100	ODH 50-100	75.4	754	260	28
60	641	75	ODH 30-75	91.6	687	245	27.5
60	641	100	ODH 30-100	91.6	916	270	30
60	641	150	ODH 30-150	91.6	1373	320	34.5
100	1093	75	ODH 100-75	156.1	1171	270	53
100	1093	100	ODH 100-100	156.1	1561	295	57
150	1649	150	ODH 150-150	235.6	3534	350	95
