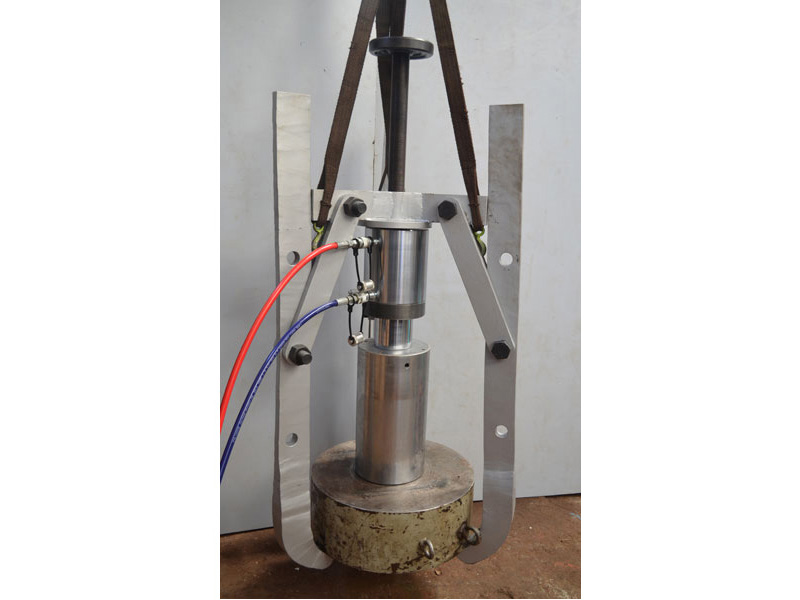

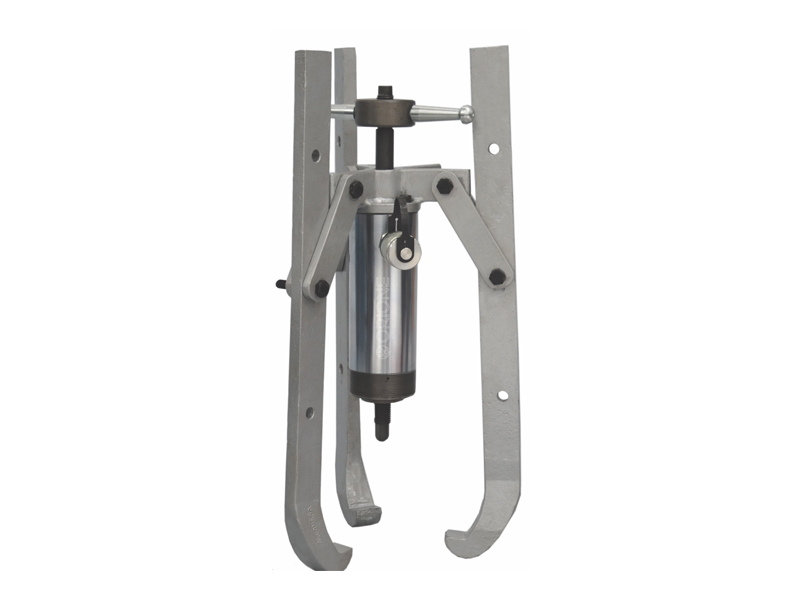

Jaw Puller
Capacity 10 - 100 ton
Features / Application :
Two and three jaw design.
Drop forged steel jaw for high strenght.
Jaw surface coated for corrosion protection.
Flexible with adjustable reach and spread.
Maintenance of workshop equipment. Removal of wheels, pulleys, gears, sleeves and other press fit assemblies.
| Model | No. of Jaws |
Capacity (ton) |
Capacity (kN) |
Cylinder Model |
Stroke (mm) |

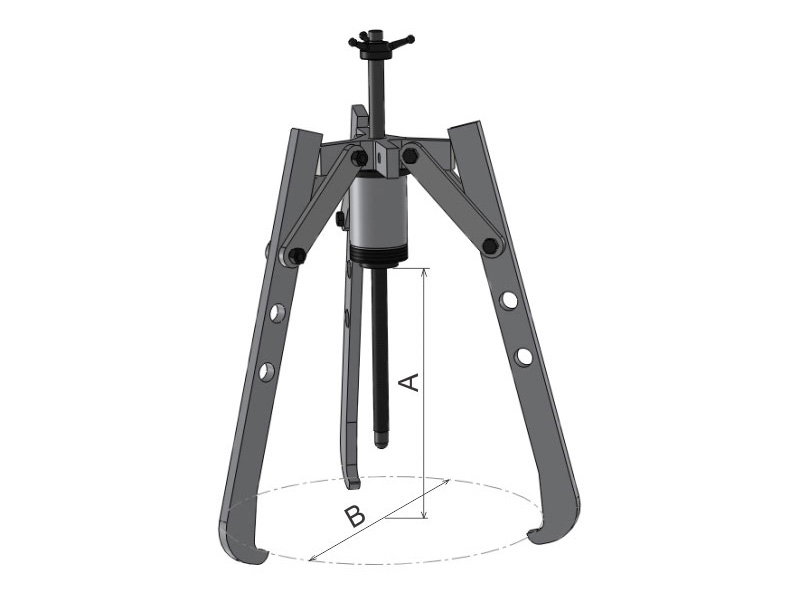

Reach A (mm) |
Spread B (mm) |
|---|---|---|---|---|---|---|---|
| OPA 10 2JP | 2 | 10 | 110 | OSH 10-100 | 100 | 295 | 395 |
| OPA 10 3JP | 3 | 10 | 110 | OSH 10-100 | 100 | 295 | 395 |
| OPA 20 2JP | 2 | 20 | 231 | OSH 20-100 | 100 | 260 | 425 |
| OPA 20 3JP | 3 | 20 | 231 | OSH 20-100 | 100 | 260 | 425 |
| OPA 30 2JP | 2 | 30 | 298 | OSH 30-100 | 100 | 380 | 610 |
| OPA 30 3JP | 3 | 30 | 298 | OSH 30-100 | 100 | 380 | 610 |
| OPA 50 2JP | 2 | 50 | 550 | OSH 50-100 | 100 | 750 | 855 |
| OPA 50 3JP | 3 | 50 | 550 | OSH 50-100 | 100 | 750 | 855 |
| OPA100 2JP | 2 | 100 | 1093 | ODH 100-100 | 100 | 1040 | 1230 |
| OPA100 3JP | 3 | 100 | 1093 | ODH 100-100 | 100 | 1040 | 1230 |
Retract pressure is preset at 1,300 PSI.
Request A QuotePneumatic Power Packs AP 1000 (Shown with Mono - Port)
EP 1000 - High Flow - High Speed For Heavy Duty Application
| Resvr.Size (Gal.) | Valve | Motor Specifications |
Flow Rate @ 115 VAC | Weight | |||
| Control | Type | 600 psi | 10,000 psi | Kg | Lbs | ||
| 2 | Solenoid | 3 Way/2 Pos. | 1.5 HP Rotary Air | 9.83 Lpm | 0.82 Lpm | 27 | 59 |
