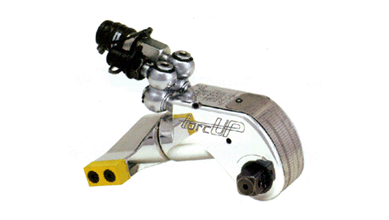

Tu Series Hydraulic Torque Wrench Specifications
Simply... The Most Advanced Wrench Ever Produced
Simply... The Most Advanced Wrench Ever Produced
| Model No. | Tu-2 | TU-3 | TU-7 | TU-11 | TU-27 | TU-60 |
| Square Drive | 3/4" | 1" | 1.1/2" | 1.1/2" | 2.1/2" | 2.1/2" |
| Min. Torque Kg-m(Ft/Lbs) | 17(127) | 45(330) | 102(740) | 152(1,100) | 376(2,720) | 801(5,800) |
| Max. Torque Kg-m(Ft/Lbs) | 175(1,270) | 460(3,330) | 1020(7,400) | 1520(11,010) | 3760(27,200) | 8018(58,000) |
| Output Accuracy | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% |
| Repeatability | 100% | 100% | 100% | 100% | 100% | 100% |
| Duty Cycle | 100% | 100% | 100% | 100% | 100% | 100% |
| Tool Weight Kgs/(Lbs) | 1.77/(3.90) | 4.09/(9.00) | 8.64/(19.00) | 13.18/(29.00) | 31.81/(70.00) |
59.00(130.00) |
Dimensions :
| Model No. | TX-2 | TX-4 | TX-8 | TX-16 | TX32 | |||||
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
|
Length
|
144.00
|
5.67
|
198.12
|
7.80
|
248.92
|
9.80
|
328.42
|
12.93
|
388.62
|
15.30
|
Height
|
101.60
|
4.00
|
142.24
|
5.60
|
177.80
|
7.00
|
192.53
|
7.58
|
276.86
|
10.90
|
Width 1
|
31.75
|
1.25
|
41.40
|
1.63
|
52.07 | 2.05 | 63.50 | 2.50 | 82.30 | 3.24 |
| Radius | 9.14 | 0.36 | 11.68 | 0.46 | 13.72 | 0.54 | 16.51 | 0.65 | 23.62 | 0.93 |
Note : All tool weights include Couplers, Swivels, Reaction Arm and Internal Oil.
The Patented Mono-Body Housing is standard on all models.

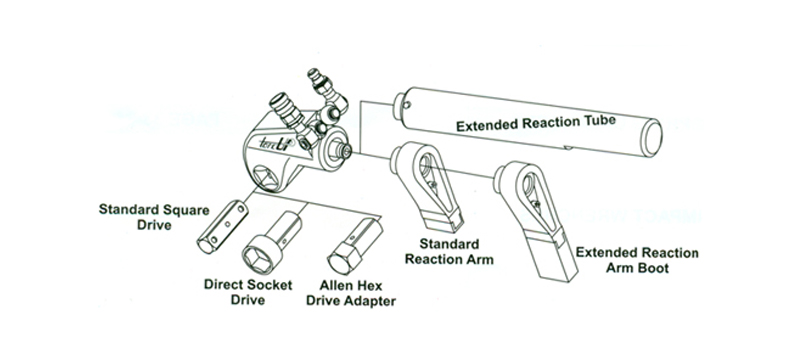

Tu Torque Wrench Accessories :
