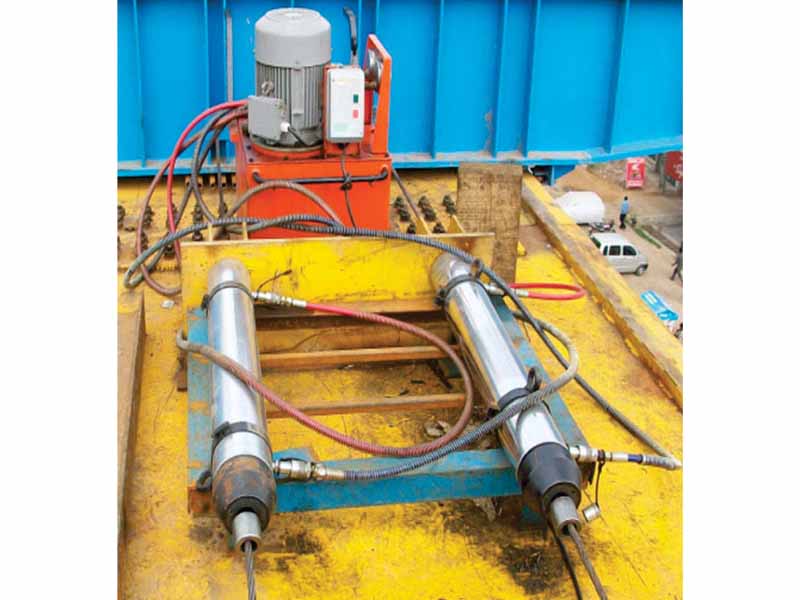

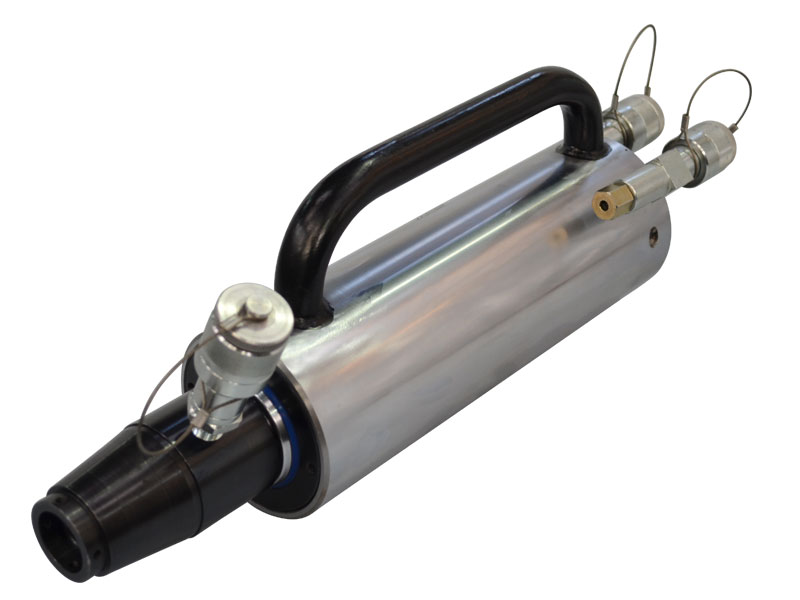

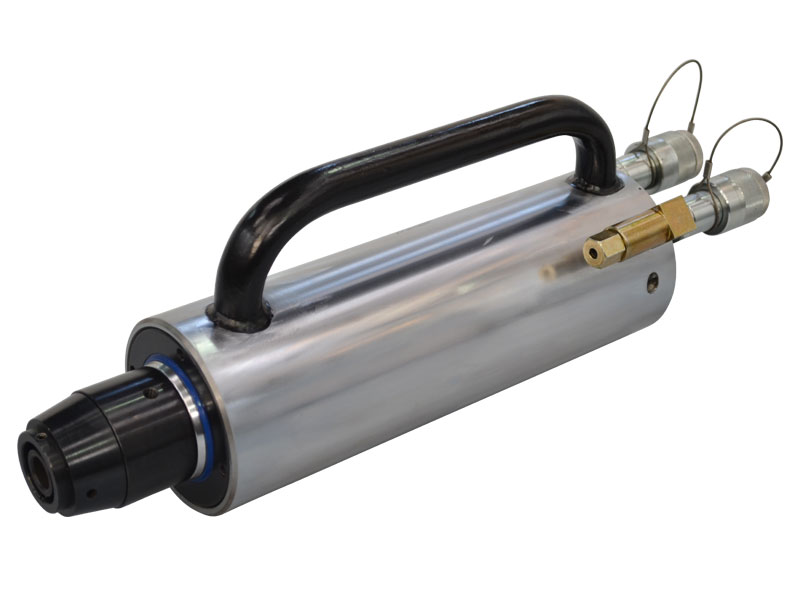

Mono Strand Jacks
Capacity: 20-30 ton | stroke 200-1000 mm
Features / Application :
Easy to insert jack over tendon in constricted space
Useful for removing slackness in long tendons
Long strokes for stressing long strand in one pull

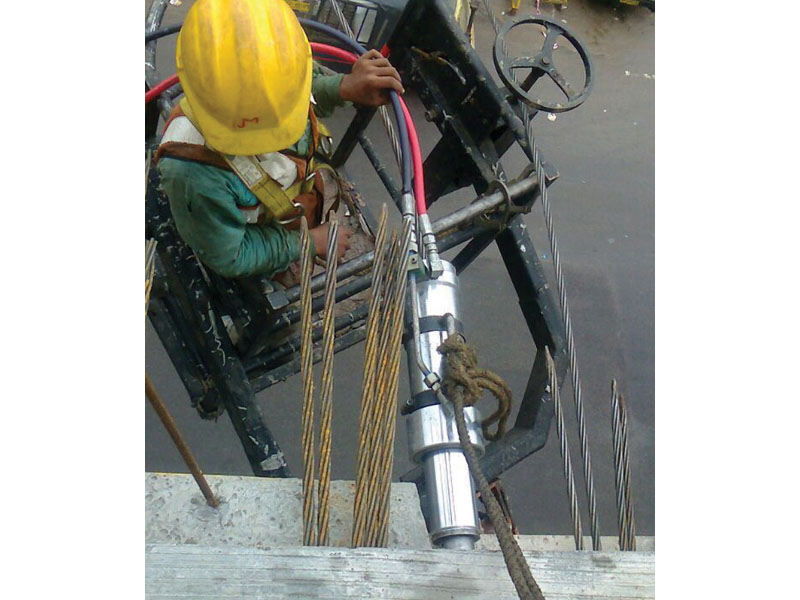

OSFG
Front Gripping
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil Cap. (cc) |
Closed height with Mechanical Wedge Lock (mm) |
Closed height with Hydraulic Wedge Lock (mm) |
C’hole Dia. (mm) |
Wt. (Approx.) (kg.) |
|---|---|---|---|---|---|---|---|---|---|
| 25 | 260 | 200 | OSFG 25-200 | 37.1 | 742 | 410 | 450 | 20 | 20 |

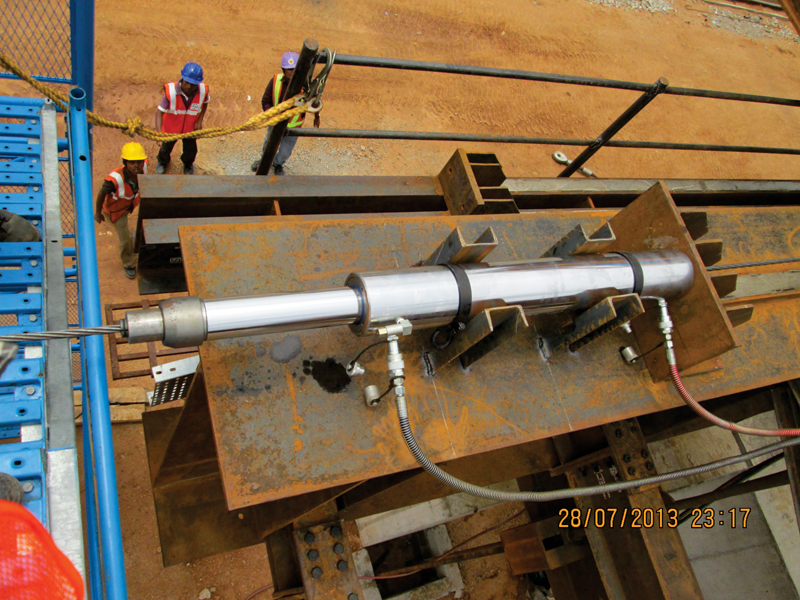

OSRG
Rear Gripping
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil Cap. (cc) |
Closed height (mm) |
C’hole Dia. (mm) |
Wt. (Approx.) (kg.) |
|---|---|---|---|---|---|---|---|---|
| 20 | 680 | 1000 | OSRG 20-1000 | 97.1 | 9710 | 1330 | 20 | 168 |
| 25 | 324 | 750 | OSRG 25-750 | 46.3 | 3475 | 1046 | 20 | 110 |
| 30 | 632 | 1000 | OSRG 30-1000 | 90.3 | 9035 | 1280 | 75 | 182 |
