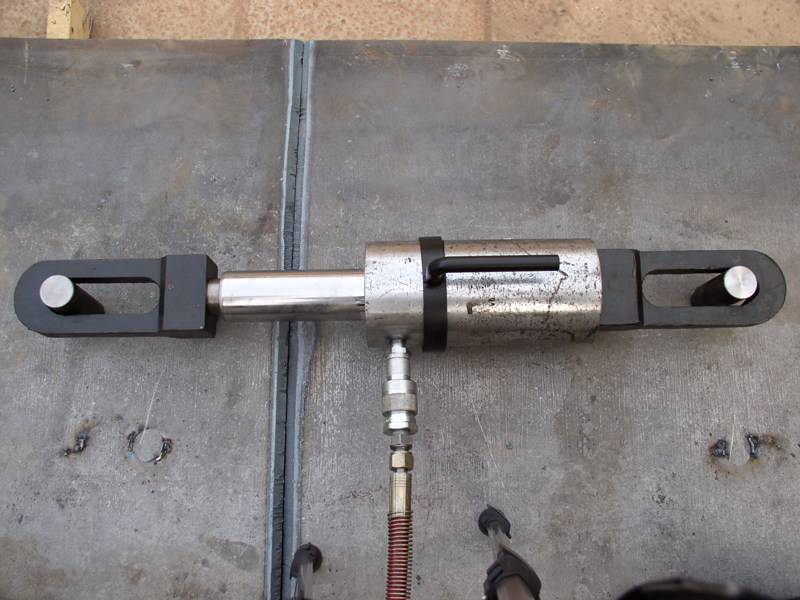

Pull Cylinder - Plain Ram, Single Acting, Spring Return
Capacity 10 - 30 ton / Stroke 150 mm / Max. Working Pressure 700 bar
Features / Application :
Replacement for Turn buckle mechanism for heavy loads.
Compression spring automatically extends piston rod when pump pressure is released.
For pulling and tensioning in heavy fabrication and maintenance.
Useful in steel structural works and tensioning.
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Extended (mm) |
Closed height (mm) |
Approx Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 10 | 107 | 150 | OSPC 10-150 | 15.3 | 230 | 691 | 541 | 14 |
| 20 | 225 | 150 | OSPC 20-150 | 32.1 | 485 | 770 | 620 | 28 |
| 30 | 332 | 150 | OSPC 30-150 | 47.4 | 715 | 820 | 670 | 48 |
