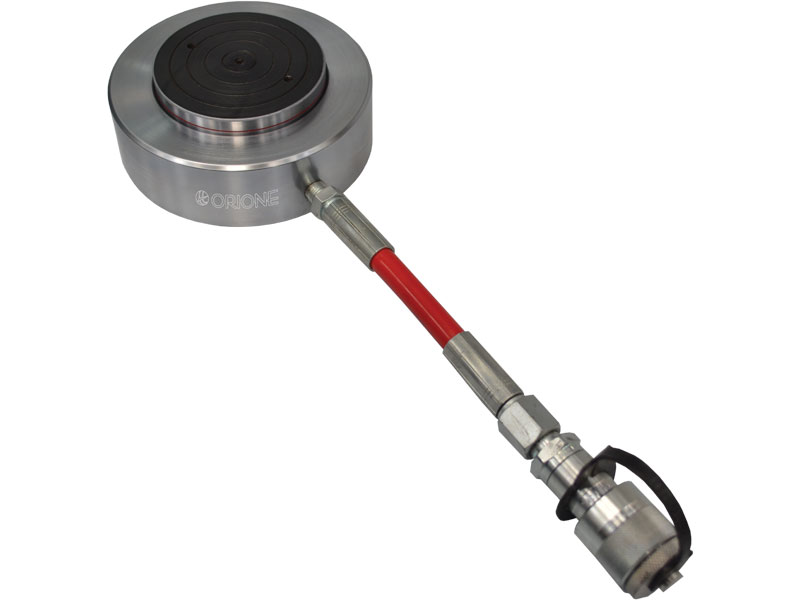

Pancake Jacks - Plain Ram
Capacity 10 - 200 ton / Stroke 10 mm / Max. Working Pressure 700 bar

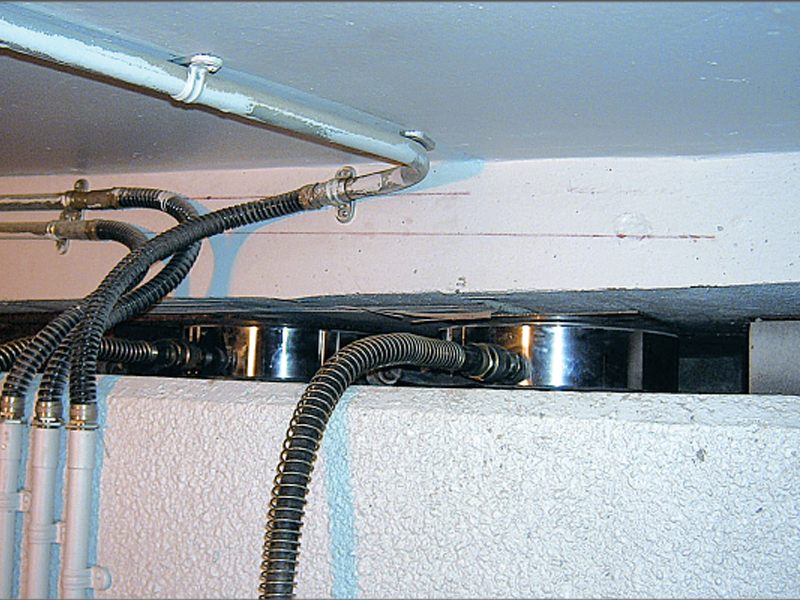

Application :
Used in confined area with extremely low clearance.
Ideally suited for precision lifting, alignment of machinery, heavy structures and removal of pulleys / sprockets on taper seats.
Note : Don't over stroke, no Ram stopper
| Capacity (ton) |
Capacity (kN) |
Stroke (mm) |
Model | Effective area (cm2) |
Oil cap. (cc) |
Closed height (mm) |
Wt. (Approx.) (kg) |
Suitable pump |
|---|---|---|---|---|---|---|---|---|
| 10 | 111 | 10 | OLPVL 10-10 | 15.9 | 16 | 30 | 1.2 | OHP-1P4-2-1.5 |
| 20 | 218 | 10 | OLPVL 20-10 | 31.2 | 32 | 35 | 2.2 | OHP-1P4-2-1.5 |
| 30 | 309 | 10 | OLPVL 30-10 | 44.2 | 44 | 40 | 3 | OHP-1P4-2-1.5 |
| 50 | 550 | 10 | OLPVL 50-10 | 78.5 | 79 | 50 | 6 | OHP-1P4-2-1.5 |
| 100 | 1077 | 10 | OLPVL 100-10 | 153.9 | 154 | 70 | 14 | OHP-1P4-2-1.5 |
| 150 | 1589 | 10 | OLPVL 150-10 | 227 | 227 | 75 | 22 | OHP-3P4-2-3 |
| 200 | 2199 | 10 | OLPVL 200-10 | 314.2 | 315 | 80 | 32 | OHP-3P4-2-3 |
